Description
Fits:
2001 Thru 2024 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM/LML/L5P Duramax Diesel
2020 thru 2025 Chevy Silverado/GMC Sierra 1500 LM2/LZ0 Duramax Diesel

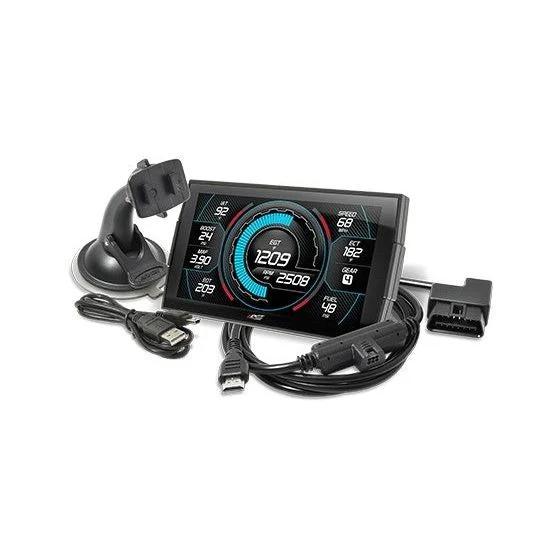

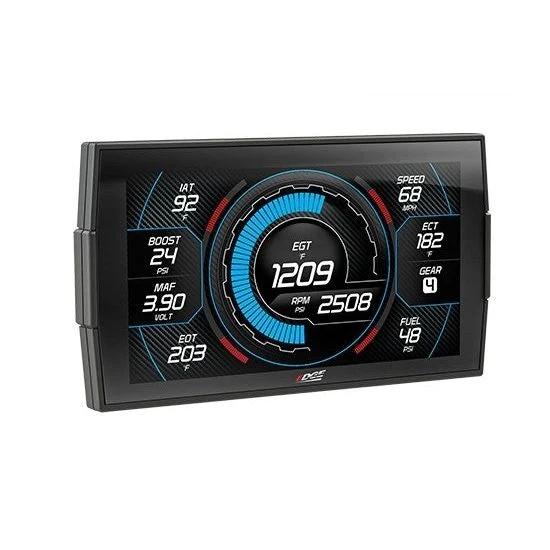

Observe and understand your vehicle parameters using Edge state-of-the-art technology. Our Insight CTS3 delivers unmatched monitoring capability for any OBDII vehicle (1996 or newer). This digital gauge display works well with custom tuning products or as a stand-alone monitor for total insight on how your vehicle is performing.
The Insight is the #1 preferred digital gauge monitor in the market today, used by daily drivers and enthusiasts everywhere. The Insight is the most comprehensive, state-of-the-art, multi-gauge touch-screen display on the market. It is an instantaneous and inexpensive alternative to bulky, analog gauges that would otherwise cost hundreds of dollars and take hours to install. This is the perfect tool for those who want to monitor their vehicle’s performance and prefer not to program their vehicle, or for those who already have significant performance upgrades and want to safely monitor their vehicle’s performance. Not only can the Insight monitor vehicle performance, but it can also be intelligently configured to provide audible and visual alerts to help you protect your vehicle.
Insight CTS3 Features:
5 full color, high-resolution, swipe screen
Custom color mixer for gauge arcs, needles, and backgrounds
Multiple gauge screen layouts
Fully customizable backgrounds
HDMI style plug for power and linking EAS accessories
One-touch easy menu navigation
Notification center
Available for 1996 and vehicles equipped with an OBDII (diagnostic) port
Switch between US or Metric units of measure
Comprehensive digital gauge display
Available for 1996 and newer vehicles equipped with an OBDII port
Compatible with other tuning devices
Displays dozens of parameters
Integrated accessory system for additional gauges or can control switches for lighting, compressors, winch, etc.
Advanced integrated data logger with export capability
Light sensitivity meter to dim screen as ambient light decreases
Internet Updatable
*Some features may vary by make/model/year.
Data Parameters:
Accel Pedal Position,
Ambient Air Temp
Barometric Pressure
Battery Voltage
Corrected Speed
Desired FRP
Desired Idle RPM
Distance Code Cleared
Distance Since Regen
EGT Exhaust Manifold
EGT1 Post Turbo
EGT2 Post CCDOC/Pre SCR
EGT3 Post SCR/Pre DPFDOC
EGT4 Post DPFDOC/Pre DPF
EGT5 Post DPF
Engine Coolant Temp
Engine Load
Engine RPM
Engine Run Time
Fuel Pressure
Fuel Rail Pressure
Fuel Temperature
G Force
Gear & TCL
Horse Power
Intake Air Temp Manifold
Main Injection Timing
Manifold Abs Pressure
Mass Air Flow
Mileage Average
Mileage Coach
Mileage Instant
Percent Grade
Regen Status
Regeneration Reason
Run Time
Start Up Intake Air Temp
Time 0 to 60
Time Quarter Mile
Torque
Trans Fluid Temp
Trip Odometer
Turbo Boost
Turbo Vane Position
Soot Accumulation percent
Urea Fluid Temp
Urea Pressure
Vehicle Speed
Warm Ups W/out Emissions Malfunction
Warm Ups W/out Non Emission Malfunction
Exclusive Technology Not Available Anywhere Else!
Edge has raised the bar again with the innovative features in the CTS3 screen that are not found in similar tuners/monitors
Razor thin display integrates into your cab seamlessly unlike other bulky monitors and busy gauge clusters.
5” HD screen, the largest available on the market, accommodates up to multiple colors and clocks at a faster frame rate than competing monitors.
Proprietary one-touch navigation menu. Seamlessly swipe through data and check alerts with the most intuitive and improved user interface ever designed for a truck programmer/monitor
One HDMI cable to power the monitor and link your EAS accessories as opposed to multiple inputs and bulkier cables that come standard on other devices.
Day or night with Edge’s built in light sensitivity meter your monitor will adjust the brightness giving you the ideal brightness while driving.
Take Performance to the Next Level!
Edge has been and still is the king of truck performance and monitoring. We increase the maximum exposure of your engine while simultaneously monitoring parameters for alerts to improve your overall driving experience.
Multiple shift-on-the-fly performance tuning settings with EAS and serial to control power and control for any situation.
Log, graph, and export hundreds of parameter to track or improve performance
Test and track performance runs such as 0-60mph, and ¼ mile
Customize it and Make it Your Own!
Everyone’s needs are different. Whether you are using your truck for work, pleasure, or competition – no other vehicle monitoring system gives you more customization options than Edge!
Display hundreds of different combinations of gauges in digital or analog format in Metric or US units
Set audible & visual alert notifications when certain parameters or temperatures are met
Adjust the background screen, gauge arcs, keylines, and needles to virtually any color to make it your own or match your vehicle’s interior.
EAS (Expandable Accessory System) compatible. Add additional sensors, probes, and switches and monitor them on the screen!
Add safety by installing a backup camera. CTS3 contains a USB port and accommodates the simple install of Edge’s Backup camera.
Your factory speedometer is no longer accurate once you add larger tires. Easily add your new tire size and display your true speed through your CTS3 Monitor.
Ships with state-of-the-art suction cup and ability to work with Edge’s custom mounting solutions for that factory installed look.
WiFi and Internet updatable to stay up with future feature releases never missing out on the next big thing.
THE PERFECT INSIGHT!
